Drone-Assisted Aircraft Lightning Strike Inspection Trials – Dubai 2025
Industry Challenge
Lightning strikes are a routine but critical event in commercial aviation. Each occurrence requires detailed structural inspection before the aircraft can return to service. Traditional inspection methods are time-consuming, labour-intensive and expose maintenance personnel to elevated safety risks.
Our Solution
PrecisionDrones conducted controlled technical trials to evaluate drone-assisted inspection of aircraft exterior surfaces.
The system integrates:
- High-resolution optical imaging
- AI-supported defect visualization
- Surface measurement capability
- Automated flight path programming
- Real-time ground-based analysis
.jpg/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:370,cg:true)
.jpg/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:370,cg:true)
.jpg/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:370,cg:true)
.jpg/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:370,cg:true)
.jpg/:/cr=t:11.7%25,l:0%25,w:100%25,h:56.39%25/rs=w:370,h:278.1954887218045,cg:true)
Trial Environment

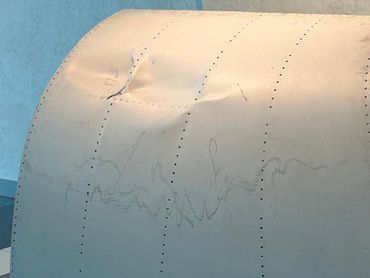

The trials were conducted in a controlled demonstration environment using aircraft surface simulation panels.
The system was tested for:
- Dent detection

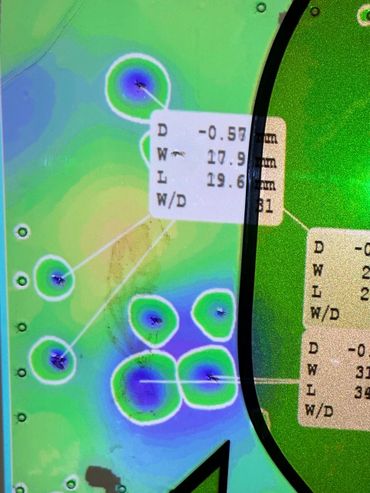

- Surface deformation mapping
- Automated defect marking
- Measurement accuracy
Results
- Full surface scan completed in 20–30 minutes
- Automated identification of small defects
- Real-time measurement output
- Reduced need for manual access equipment
- Improved inspection repeatability
Operational Benefits
- Reduced aircraft downtime
- Increased personnel safety
- Standardized inspection reporting
- Data-driven maintenance planning
Future Development
- Enhanced AI defect recognition
- Integration with MRO digital systems
- Expanded testing across diverse aircraft platforms
